Drift tires and a Readyset package! The MA-020S AWD Sports has arrived!
Advanced 020 model chassis with gyro-ready circuit board !
To bring its dynamic performance to even more drivers, the MINI-Z AWD Sports is now available in a Readyset. The latest MA-020 chassis features VCS (variable camber suspension) on the front that optimizes camber change with suspension stroke and a specially designed circuit board. The chassis design allows space for installing the special Sports version gyro (sold separately) and adjustment of gyro gain (sensitivity). The gyro can be adjusted on the chassis to reflect the amount of steering correction in response to changes in chassis posture, allowing beginners through to experts to drive to their full potential. Fully fitted out with precision ball bearings, the high drive efficiency of the MA-020 chassis is complimented in the Readyset by the unique scale body and 2.4GHz Perfex KT-19 R/C system that requires no frequency band setting; all at a great value price. Simply set the batteries to enjoy the thrill of drift driving with the included set of drift tires. The chassis is compatible with nearly all ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD Sports promises a unique world of dramatic racing action for you to experience and enjoy.
●Newly developed AWD Sports chassis based on MA-020 chassis.
●Special circuit board compatible with optional gyro.
●Chassis features gyro sensitivity adjustment function.
●Drift tires are installed as standard.
●Readyset requires only batteries to be ready for action!
●Features 2.4GHz Perfex KT-19 transmitter that requires no setup of frequency bands.
●Factory completed body comes with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber in accordance with suspension stroke.
●Coil spring on front suspension can be easily replaced without tools.
●A wide range of optional parts is available to be installed.
●Note) Optional ICS can NOT be used.Also, this model is specially designed for the KT-19 transmitter. It is not compatible with the KT-18 and EX-5UR ASF transmitters (No.82011). It is only compatible with the special (No.MZW431) gyro unit (sold separately).
Includes the 2.4 GHz Perfex KT-19 transmitter that automatically manages frequency bands. Just set the batteries and the Readyset is ready for operation.
Special AWD Sports chassis is based on the MA-02 chassis and features the RA31/MD208 unit.
Features VCS front suspension that optimizes camber change in concert with suspension stroke. Replacement of front suspension coil springs is easy with no tools required.
Equipped with strut-type rear suspension.
Full bearing specifications include 14 ball bearings.

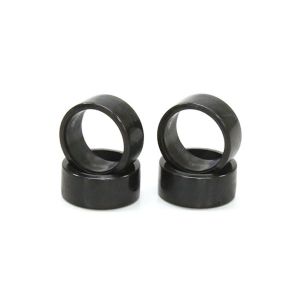

Equipped with drift tires as standard.
Sports version is designed with special mounting space for gyro (MZW431/sold separately) and gyro adjustment volume.
- TECHNICAL DATA
164.0 - 165.0mm
68.0 - 70.5mm
45.0 - 48.0mm
56.5 - 58.5mm / 56.5 - 58.5mm
F8.5 mm / F8.5 mm (drift tires)
7.23, 6.38, 6.0, 5.71, 5.34, 4.97, 4.5 : 1
- KIT CONTENTS
＜ ReadySet Contents ＞
●Factory assembled chassis with pre-installed R/C unit
●Pre-painted factory assembled plastic body, finished with markings
●2.4GHz Perfex KT-19 transmitter
●Drift tires (installed)
●Pinion gears (15T, 17T, 19T, 21T)
●Spur gears for wheelbases: 27T, 29T, 31T for M, L
●Pinion gear tool
- REQUIRED FOR OPERATION
＜ Required for Operation ＞
●AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
●AAA-size alkaline batteries x 4 for transmitter
